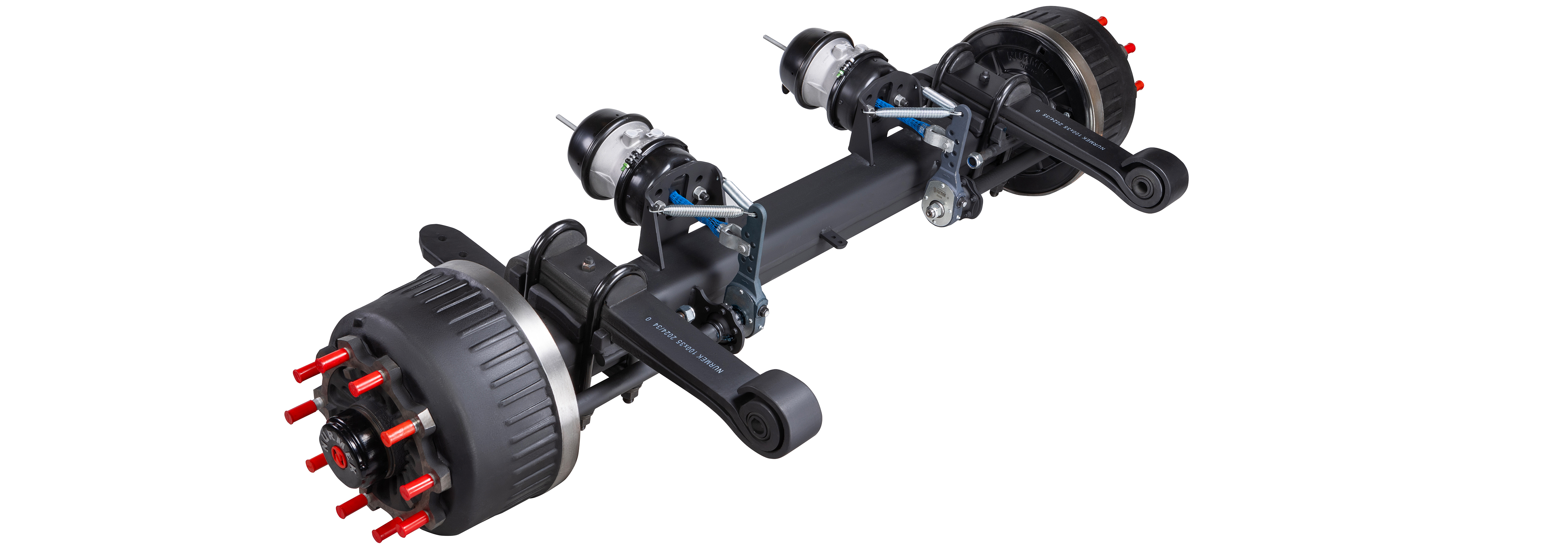

Single Tyre Drum Brake Type - ET120 9-12 Ton
Axle Load Capacity : 9 – 12 tons
Rim Size: 20” / 22.5” / 24”
Brake Type: with SB 4218 (Æ420x180) and SB 4220 (Æ420x200) drum brake type
Wheel Connection: 10 stud (281/335 mm)
Axle Beam Section: 9 ton (120x12 mm), 12 ton (140x12 mm)
